Entry-Level Edge Gateway
Edge Lite

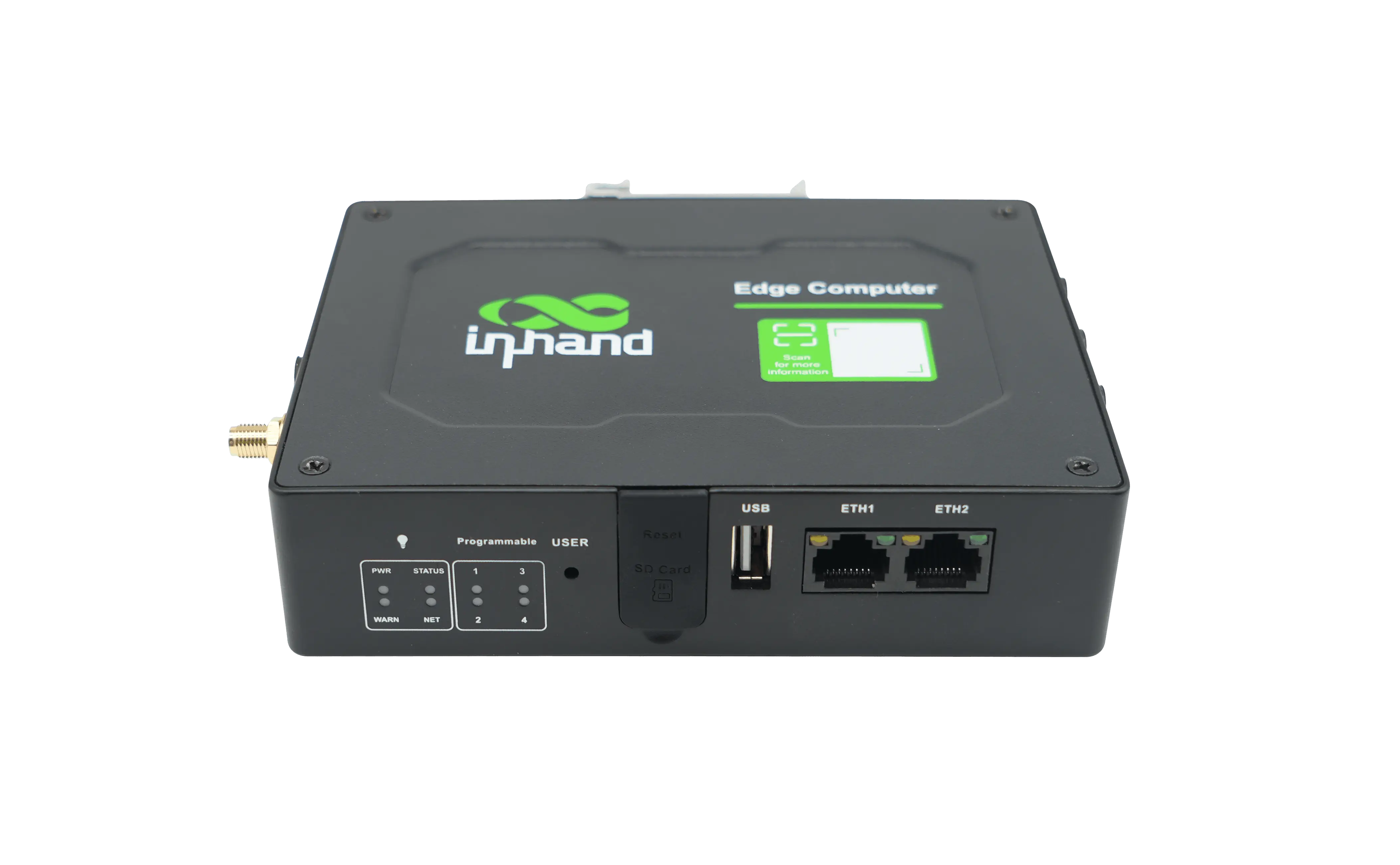

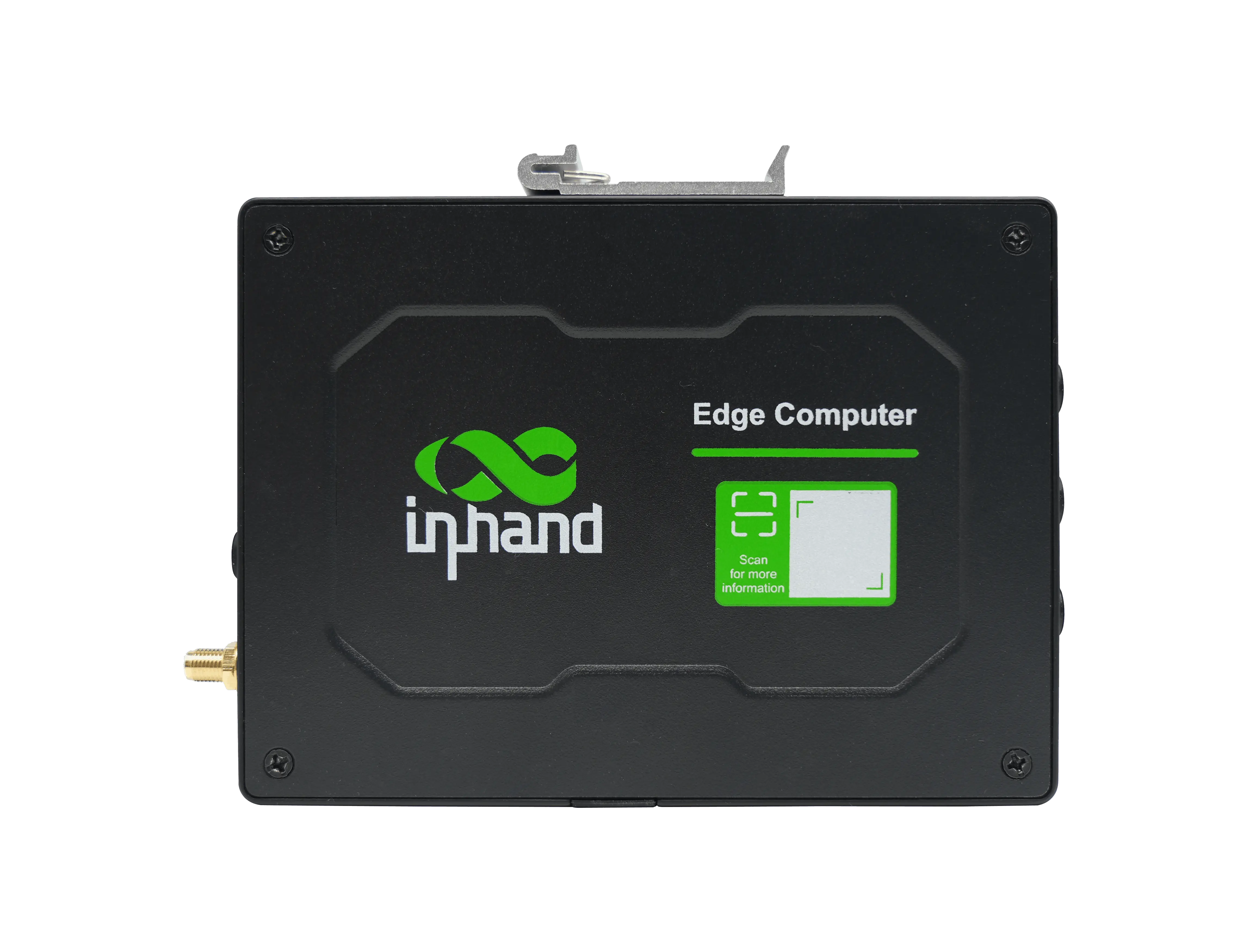

EC312 Series Basic Edge Computer
The EC312 series edge computer is designed for lightweight edge applications. Rich interfaces expandable to CAN, analog input, and RS-232/485. Built-in Linux with Docker support for custom edge applications.
Configure Your Device
Model NumberEC312-H-FQ53
Total Price£284
ex VAT
Key Features
Edge Computing Ready
Linux-based platform supporting Docker containers and custom edge applications
Industrial Security
Secure Boot, TPM 2.0, TrustZone, and VPN support for enterprise deployments
Cloud Management
InHand DeviceLive cloud platform for remote device management and monitoring
Flexible Connectivity
Wired, cellular, and Wi-Fi options with automatic failover and dual SIM support
Built For Your Applications
- Industrial data logging and protocol conversion
- Remote monitoring and telemetry
- Smart city and energy applications
- Building automation gateways
- Retail and vending IoT
- Fleet and asset tracking
.webp)
Technical Specifications
Hardware Specifications
Hardware Platform
- CPU
- ARM Cortex-A53 @ 1.4GHz
- RAM
- 1GB DDR4
- FLASH
- 8GB eMMC
Interfaces
- Ethernet Port
- 2x 10/100Mbps Ethernet port
- Serial Port
- 1x RS-232/485 + 1x RS-485, isolation
- USB
- USB 2.0, 1x Type A
- SIM Card
- Nano SIM x2
- Antenna Connector
- LTE: SMA x1, Wi-Fi: SMA x1, GPS: SMA x1
- Wi-Fi (Optional)
- STA, 802.11ac/a/b/g/n, 2.4G/5G
- Bluetooth (Optional)
- BLE 4.2
- GPS (Optional)
- Satellite location GPS, SMA x1
- TF Card
- MicroSD support, up to 32GB expansion
- Interface Extension
- Up to 2x RS-232/RS-485/4-20mA/CAN FD, isolation
Security
- TPM (Optional)
- Integrated TPM chip, TPM 2.0
Power
- Power Input
- 9-48V DC
- Power Consumption
- 6W (MAX)
- Power Failure Protection
- Hold for 20 seconds after power failure (safe shutdown)
- Power Failure Alarm
- Power failure alarms when power failure happens
Mechanical
- Installation
- Panel, Rail
- Weight
- 339g
- Dimensions
- 145 x 106 x 36mm
- Protection Rating
- IP30
- Housing
- Metal + Plastic
- Cooling
- Fanless
Environment
- Storage Temperature
- -40°C to +85°C
- Operation Temperature
- -20°C to +70°C
- Ambient Humidity
- 5-95% (non-condensing)
Indicator
- LED
- PWR, STATUS, WARN, NET, USER x4
Software Specifications
Operating System
- OS
- Debian 11, Kernel 5.10.168
Internet
- Access Authentication
- APN, VPDN
- Internet Access
- CHAP, PAP
- Network Type
- LTE CAT1
- LAN Protocol
- ARP, Ethernet
- WAN Protocol
- Static IP, DHCP
Network Protocol
- IP Application
- ICMP, DNS, TCP/UDP, TCP Server, DHCP
- IP Routing
- Static routing
Security
- Multilevel User
- Multi-level management rights
- Data Security
- Firewall, Secure Boot, TrustZone
Reliability
- Link Detection
- Sends heartbeat packets to detect, auto redials when disconnected
- Dual SIM Failover
- Supports dual SIM failover
- Embedded Watchdog
- Device runs self-detection, auto recovers from malfunctions
Open Platform
- Development Environment
- Multi-programming language development platform
- Cloud Platform
- AWS, Azure, Ali and other cloud platforms
Data Acquisition Protocol
- Industrial Protocol
- Modbus RTU/TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC, HostLink, PPI
- Electricity Protocol
- DLT645-2007, IEC101/104, DNP3.0
- Other Protocol
- BACnet, CNC
Network Management
- Configuration
- Web, SSH
- Upgrade
- Web, FOTA, DFOTA
- Log
- Support local system logs, remote logs, and important log power-off preservation
- Configuration Backup
- Import and export configuration files
- Remote Management
- InHand DeviceLive or HTTP, HTTPS, SSH, etc
- DeviceLive Cloud
- Cloud-based parameter configuration, container management, application and firmware management
Ready to Get Started?
Contact our team to discuss your edge computing requirements and get a customised quote.
