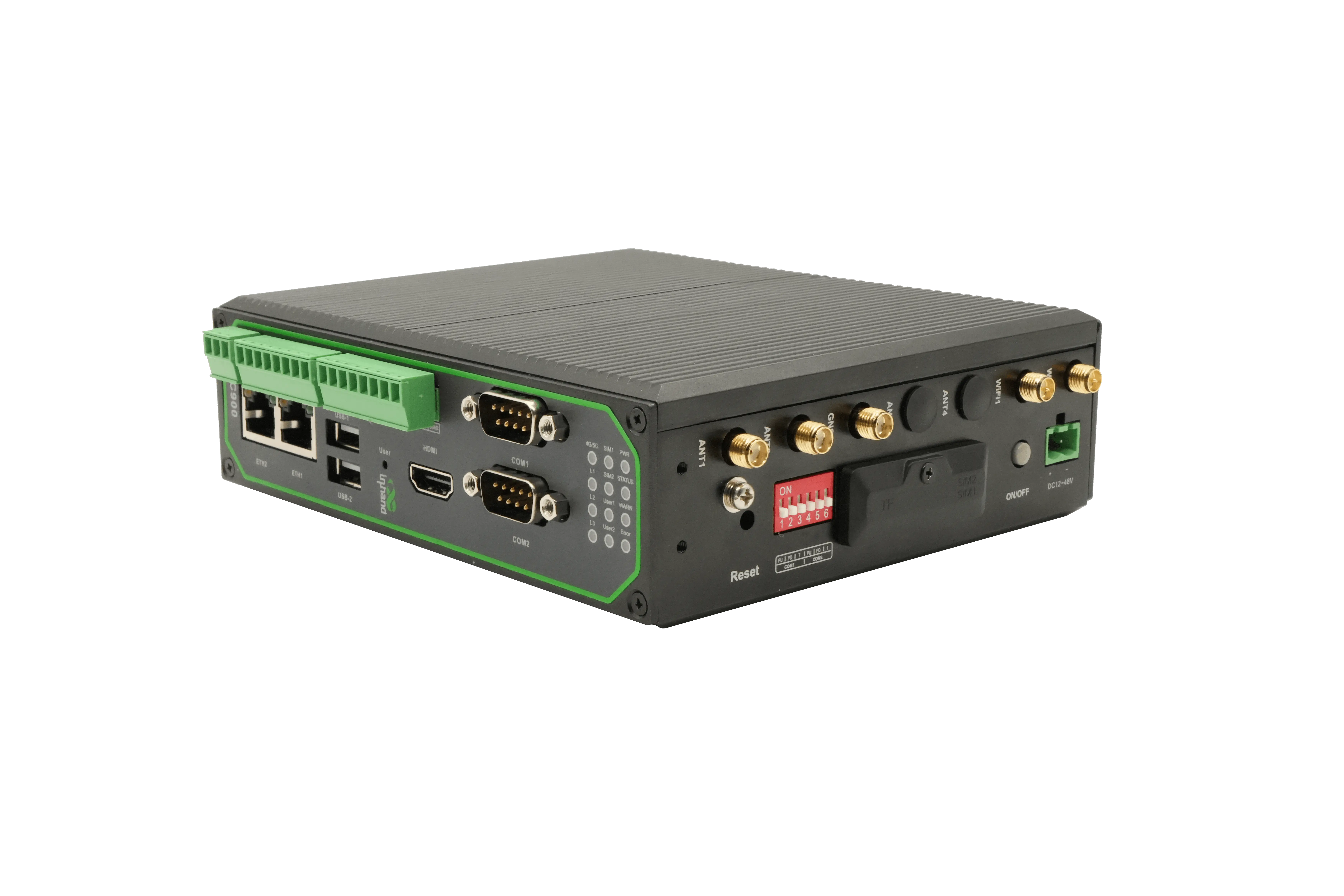

EC942 Series Lite AI Edge Computer
The EC942 series is a lightweight AI-accelerated edge computer for the industrial Internet of Things. Equipped with an ARM Cortex-A55 quad-core processor at 2.0GHz, 4GB RAM and 16GB eMMC, it provides a powerful computing platform with 1 TOPS AI inference capability.
Configure Your Device
Full Tier Includes:
WiFi 802.11ac
GPS/GLONASS
TPM 2.0
4 DI / 4 DO
CAN Bus
Model NumberEC942-H-FQ58-B
Total Price£459
ex VAT
Key Features
AI-Accelerated Computing
1 TOPS NPU for edge AI inference, object detection, and basic machine learning workloads
Industrial Security
Secure Boot, TPM 2.0, TrustZone, VPN support, and multi-level user management
Cloud Management
InHand DeviceLive cloud platform for remote device management, container deployment, and monitoring
5G/4G Connectivity
Multiple cellular options with dual SIM failover and wired/wireless backup
Built For Your Applications
- Industrial automation and control systems
- Vehicle telematics and fleet management
- Building automation and BMS integration
- Smart city infrastructure
- Energy monitoring and management
- Basic AI inference and edge analytics
.webp)
Technical Specifications
Hardware Specifications
Hardware Platform
- CPU
- Quad-core Cortex-A55 @ 2.0GHz
- GPU
- Mali-G52 2EE
- NPU
- RKNN, 1 TOPS
- RAM
- 4GB
- Storage
- 16GB eMMC
Interfaces
- Ethernet Port
- 2x 10/100/1000Mbps Ethernet port
- Serial Port
- 2x RS-232/485/422, DB9
- I/O (Optional)
- 4x DI, 4x DO
- CAN (Optional)
- 1x CAN 2.0A/B
- Wi-Fi (Optional)
- STA, 802.11ac/a/b/g/n, 2.4G/5G dual band
- Bluetooth (Optional)
- BLE 4.2
- GPS (Optional)
- Supports GPS, Beidou, and GLONASS positioning
- USB
- USB 2.0, 2x Type A, 1x Type C
- HDMI
- 1x HDMI 2.0
- Expansion Interface
- 1x mSATA, supports mSATA SSD
- SIM Card
- 2x MicroSIM
- TF Card
- Supports MicroSD cards up to 32GB
Security
- TPM (Optional)
- Integrated TPM chip, TPM 2.0
- Secure Boot
- Supported
Mechanical
- Installation
- DIN-rail, wall mounting
- Protection Rating
- IP30
- Housing
- Metal
- Weight
- 810g
- Dimensions
- 47.3 x 162.7 x 148.3mm
Power Supply
- Power Input
- DC 12-48V, polarity reversal protection
- Power Interface
- Industrial terminal block
- Power Consumption
- 8W
Environment
- Working Temperature
- -20°C to +70°C
- Storage Temperature
- -40°C to +85°C
- Ambient Humidity
- 5-95% (non-condensing)
Indicator
- LED
- 4G/5G, Signal Strength (L1-L3), SIM1, SIM2, User1, User2, PWR, STATUS, WARN, ERR
EMC Index
- Electrostatic Discharge
- EN61000-4-2, level 3
- Radiation RFI Immunity
- EN61000-4-3, level 3
- Electrical Fast Transients
- EN61000-4-4, level 3
- Surge
- EN61000-4-5, level 3
- Conducted RFI
- EN61000-4-6, level 3
Physical Features
- Shock
- IEC60068-2-27
- Vibration
- IEC60068-2-6
- Free Fall
- IEC60068-2-32
Certification
- Certifications
- CE, FCC, PTCRB, Verizon Wireless, AT&T, T-Mobile
Software Specifications
Operating System
- OS
- Yocto/Linux (Debian 10, Kernel 4.19)
- File System
- Debian core root filesystem
- Package Manager
- Debian Package Manager
Network Interconnection
- Network Type
- 5G, LTE Cat4, LTE Cat6 (different models)
- Network Access
- APN, VPDN
- Access Authentication
- CHAP/PAP
- LAN Protocol
- ARP, Ethernet
- WAN Protocol
- Static IP, DHCP
Security
- Secure Boot
- Supported
Reliability
- Backup
- Dual SIM
- Link Detection
- Multi-level link detection, auto-redials once disconnected
- Embedded Watchdog
- Device self-diagnosing, auto-recovers from operation faults
Data Acquisition Protocol (DSA)
- Industrial Protocol
- Modbus RTU/TCP Master/Slave, EtherNet/IP, ISO on TCP, OPC UA Client/Server, Mitsubishi MC 3C/3E/3C OverTCP, Mitsubishi CPU Port, FINSUDP, HostLink, PPI
- Electricity Protocol
- DLT645-2007, IEC101/104, DNP3.0
- Other Protocol
- BACnet, CNC
Maintenance and Management
- Upgrade Method
- Supports patent upgrade mechanism, local or remote firmware upgrade
- Log
- Support local system logs, remote logs, and important log power-off preservation
- Remote Management
- InHand DeviceLive, HTTP, HTTPS, SSH, etc.
- DeviceLive Cloud
- Supports cloud-based parameter configuration, container management, application and firmware management
